EJ-SCT Debugger ARM Series [Discontinued Products]

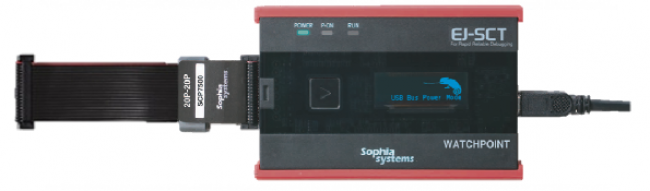

EJ-SCT is an eco tool for new age. It not only can debug many CPUs from different makers on one common platform, but also can use JTAG emulator/ Stand-alone writer on the same platform. WATCHPOINT supports both single core ARM7/9/11/Cortex (A15,A9,A8,R4,M3) and multiple core. Since the hardware can be re-used, large quantities of H/W for application S/W developments is not necessary any more.
[Discontinued Products]
[Discontinued Products]
Connections

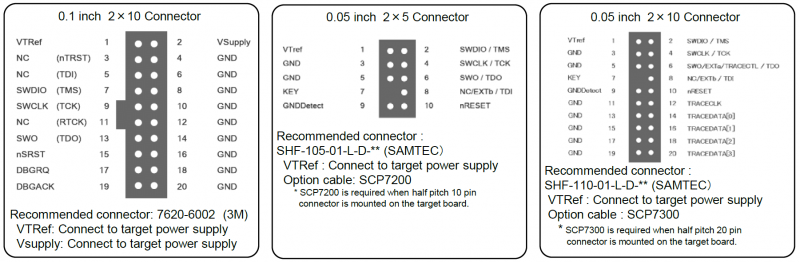

JTAG Header Connector Pin Assignment(Top View)
SWD (SerialWireDebug) interface is supported.
SWV (SerialWireViewer) is supported.
It is possible to view the values of variables and event information without break during execution.
* SWD is supported by Cortex-A/R/M series. SWV is supported only by Cortex-M series.
SWV (SerialWireViewer) is supported.
It is possible to view the values of variables and event information without break during execution.
* SWD is supported by Cortex-A/R/M series. SWV is supported only by Cortex-M series.
The list of Supported ARM Core Evaluation Boards
Last update: Oct. 01, 2014
| ARM licensee or board maker | Board | CPU | Core |
| Actel | A2F-DEV-KIT [SmartFusion] | A2F200M3F-FGG484 | Cortex-M3 |
| SmartFusion | A2F500M3F-FGG484 | Cortex-M3 | |
| AKM Semiconductor | - | AK2495 | ARM7TDMI |
| Aplix | OPA-01L | i.MX31/Freescale | ARM1136 |
| Applause Technologies | EMP-ARM9 | AP4010 | ARM926EJ-S |
| ARM | Integrator/CM1136JF-S | Test chip/ARM | ARM1136JF-S |
| Integrator/CM920 | Test chip/ARM | ARM920 | |
| Integrator/CM922T-XA10 | Excalibur/Altera | ARM922T | |
| Integrator/CM922T-ETM | Test chip/ARM | ARM922T | |
| Integrator/CM926EJ-S | Test chip/ARM | ARM926EJ-S | |
| Integrator/CM946E-S | Test chip/ARM | ARM946E-S | |
| Atmark Techno | Armadillo-9 | EP9315/Cirrus | ARM920T |
| Armadillo-500 | MCIMX31 | ARM1136JF-S | |
| Armadilo-440 | MCIMX25 | ARM926 | |
| ATMEL | AT91SAM7S-EK | AT91SAM7S321 | ARM7TDMI |
| AT91SAM9261-EK | AT91SAM9261 | ARM926EJ-S | |
| AT91SAM9263-EK | AT91SAM9263 | ARM926EJ-S | |
| AT91SAM9G45-EKES | AT91SAM9G45 | ARM926EJ-S | |
| BeagleBoard.org | Beagle Board | OMAP3530/TI | Cortex-A8 |
| Cirrus Logic | - | EP7212 | ARM720 |
| EDB9315A-Z | EP9315 | ARM920T | |
| EDB9307A-Z | EP9307 | ARM920T | |
| EDB9302A-Z | EP9302 | ARM920T | |
| Conexant Systems, Inc. | - | MFC2000 | ARM7TDMI |
| CQ Publishing Co.,Ltd. | CQ RISC Evaluation Kit/ARM7 | MN1A7T0200/Panasonic | ARM7TDMI |
| - | LPC2388/NXP | ARM7TDMI | |
| Freescale Semiconductor | M9328MX1ADS | MC9328MX1 | ARM920T |
| M9328MXLADS | MC9328MXL | ARM920T | |
| M9328MX21ADS | MC9328MX21 | ARM926EJ-S | |
| MCIMX25 PDK | MCIMX255 | ARM926EJ-S | |
| M9328MX27ADSE | MCIMX27 | ARM926EJ-S | |
| MCIMX31ADS | MCIMX31 | ARM1136JF-S | |
| - | MCIMX35 | ARM1136JF-S | |
| MCIMX51EVKJ (Babbage Development Board) | MCIMX51 | Cortex-A8 | |
| Fujitsu Semiconductor | - | MB9BF500 | Cortex-M3 |
| KEIL | MCB1760 | LPC1766/NXP | Cortex-M3 |
| MCB1760 | LPC1768/NXP | Cortex-M3 | |
| MCB2130 | LPC2138/NXP | ARM7TDMI | |
| MCBTMPM330 | TMPM330FDFG/Toshiba | Cortex-M3 | |
| MCBSTM32 | STM32F103/STMicro | Cortex-M3 | |
| Linkup Systems | - | L7205 | ARM720T |
| - | L7210 | ARM720T | |
| Logic PD | ZOOM AM1808 EVM | AM1808/TI (Sitara) | ARM926EJ-S Sitara |
| LOSTEAKA,Inc. | OMAP-Petit board | OMAP5912/TI | ARM926EJ-S |
| OMAP-CARD-A board | OMAP5912/TI | ARM926EJ-S | |
| Mistral Solutions | OMAP35xEVM | OMAP3503/TI | Cortex-A8 |
| AM/DM37x EVM | DM3730/TI (DaVinci) | Cortex-A8 | |
| NXP | - | LPC2294/NXP | ARM7TDMI |
| NXP(SHARP) | SDK-LH75401-10 | LH75401 (CPU Series: BlueStreak) | ARM7TDMI-S |
| OKI | - | ML67Q2403 (Read/Write Internal Flash) | ARM926EJ-S |
| ML670100 | ARM7TDMI | ||
| OLIMEX | ADUC-P7026 | ADuC7026 | ARM7TDMI-S |
| PandaBoard.org | Panda Board | OMAP4430/TI | Cortex-A9 MPCore |
| Renesas(NEC) | Medity M2 Reference Board | μPD77620 | ARM1176 |
| SEMC-EM1 [EMMA Mobile 1-S] | μPD77630A | ARM1176JZF-S | |
| NE1-TB [NaviEngine 1] | μPD35001 | ARM11 MPCore | |
| - | EMMA Mobile EV2 | Cortex-A9 | |
| Samsung | SMDK2440 | S3C2440 | ARM920T |
| - | S3C6410 | ARM1176JZF-S | |
| SMDK-C100 | S5PC100 | Cortex-A8 | |
| SMDK-V210 | S5PV210 | Cortex-A8 | |
| SANYO | - | LC82331 | ARM7TDMI-S |
| SHARP | - | LH77790A | ARM7DI |
| - | LH79532 | ARM7TDMI | |
| Sohwa & Sophia Technologies | BDA008 Collage-MX6Q | MCIMX6Q/Freescale | Cortex-A9 |
BDA006 Collage-MX51 | MCIMX51/Freescale | Cortex-A8 | |
BDA007 Trinitas | TMS320DM8168 | Cortex-A8 | |
| STMicroelectronics | Nomadik | STn8810 | ARM926EJ-S |
| STM3210B-EVAL | STM32F103VBT6 (Read/Write Internal Flash) | Cortex-M3 | |
| STM32F100RBT6B | STM32F103ZET6 | Cortex-M3 | |
| SVTronics | sEVM4430 | OMAP4430/TI | Cortex-A9 MPCore |
| TI | Innovator Development Kit | OMAP1510 | ARM925 |
| OMAP5912 OSK | OMAP5912 | ARM926EJ-S | |
| H2 | OMAP16xx | ARM926EJ-S | |
| H4 (SDP2420) | OMAP2420 | ARM1136JF-S | |
| SDP2430 | OMAP2430 | ARM1136JF-S | |
| SDP3430 | OMAP3430 | Cortex-A8 | |
| - | OMAP3440 | Cortex-A8 | |
| - | OMAP3630 | Cortex-A8 | |
| OMAP4430SDP | OMAP4430 | Cortex-A9 MPCore | |
| - | DM6441(DaVinci) | ARM926EJ-S | |
| DM6446 DVEVM | DM6446(DaVinci) | ARM926EJ-S | |
| DM350SDP | TMS320DM350(DaVinci) | ARM926EJ-S | |
| TMDXEVM355 | TMS320DM355(DaVinci) | ARM926EJ-S | |
| TMDXEVM365 | TMS320DM365(DaVinci) | ARM926EJ-S | |
| TI(Luminary Micro) | LM3S811 EVAL BOARD | LM3S811 (Read/Write Internal Flash) | Cortex-M3 |
| Toshiba Semiconductor | - | TMPM321F10FG | Cortex-M3 |
| TMPM341FDXBG | |||
| TMPM360F20FG | |||
| TMPM361F10FG | |||
| TMPM362F10FG | |||
| TMPM363F10FG | |||
| TMPM364F10FG | |||
| TMPM370FYFG | |||
| TMPM380FYDFG | |||
| TMPM395FWXBG |
The list shows only the board names which can be released.
Please contact us for board products not listed above.
