RTOS Task Transition Graphic Display

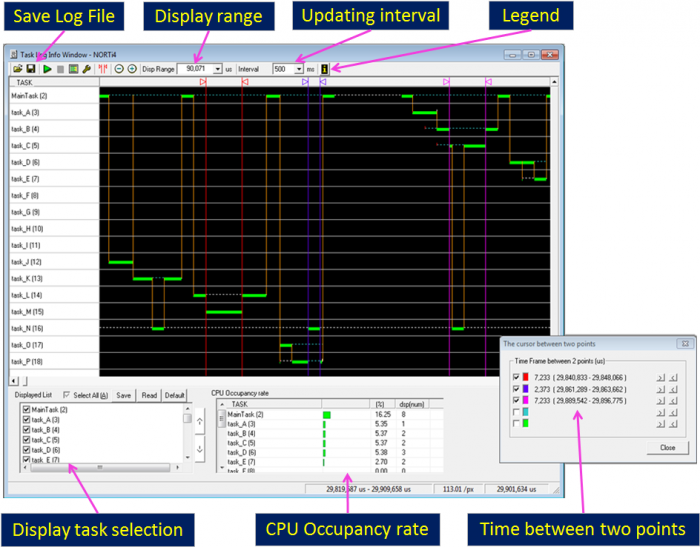

Task Transition Information Display window

The OS task transitions display allows you to view time-series transition data for each task of OS and to review the occupancy rate of each task graphically.

Graphic display of task execution transition status

The Task transition information display window allows you to analyze easily the changes of system status by switching of tasks and occurrence of interrupts, etc. because it displays the task execution process status of user program graphically (time in the horizontal axis and task names etc. in the vertical axis). You can also check the execution order and the transition status easily. The task name and task ID are displayed for each task.

Graphic display of CPU occupancy rate

You can grasp the execution efficiency of the overall system because it displays CPU usage status during the specified time range.

Time measurement between any two points

It displays the time between the specified two points.
