EJ-Writer TLCS Series [Discontinued Products]

ejs

EJ-Writer for TLCS Series is Writer that supports Toshiba TLCS series. It writes it by using SERIAL-PROM-MODE for the flash memory with built-in TLCS Series Microcomputer. Available to supply power from EJ-Writer to target system.Leave data to internal memory, download by one button. Its small size and versatility make it a perfect solution for use in the field or in a manufacturing environment.
[Discontinued Products]

sales contact

technical support

EJW_TLCS


  • features

  • Specifications

  • connections

  • Ordering Information

Connections

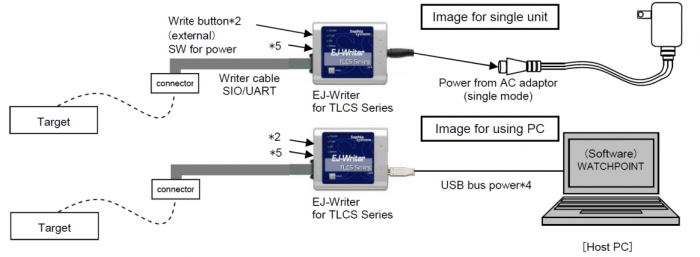

Connecting Image

connect_image

Target connection

target_connect

*1.Use PS+3.3V,PS+5V terminal when providing power from EJ-Writer to user system.
*2.Writer button (external) is available to draw out power from EJ-Writer.. Push/ Foot Switch for ATX board is available to use.
*3 User has to prepare receptacle of 2.54mm pitch 10pin general connector
*4 AC adaptor is necessary when supply power from EJ-Writer to target system.
*5 Position for user processed connector
