Universal Probe Main unit

The Universal Probe is an all-in-one tool useful in any phase from R&D to production.
It can change the function by replacing the software, and provides superior cost-effectiveness to support both hardware and software development.

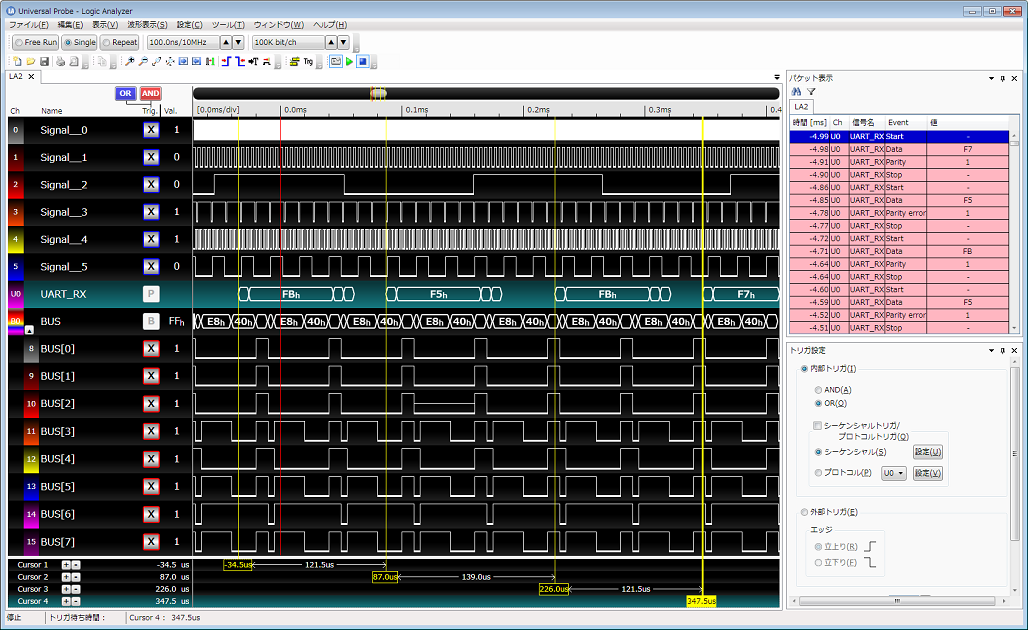

Logic Analyzer

This is a software product to be used with Universal Probe.

As various devices have been digitalized, logic analyzer to measure digital signal is necessary for development of electronic equipment.
When you wish to measure many signals simultaneously and record for long time, logic analyzer is more advantageous than oscilloscope which may be substituted to some extent.
Although the Logic Analyzer software is offered at an affordable price, it can be enhanced to 32 channels (*) and also has a protocol analyzer function as a standard feature.

Protocol analyzer analyzes 4 protocols of I2C, SPI, UART and CAN, which are communication interfaces to be often used in electronic equipment, from the data acquired by the Logic Analyzer and displays so that users can confirm the content of communication easily.
In addition, as Logic Analyzer can trigger with the result of protocol analysis, it is easy to confirm the content of communication before and after an occurrence of an error.

*: 4 units of Universal Probe are required in order to enhance to 32 channels.

As the waveform data and the result of protocol analysis can be output as a text file, it is possible for users to process data.

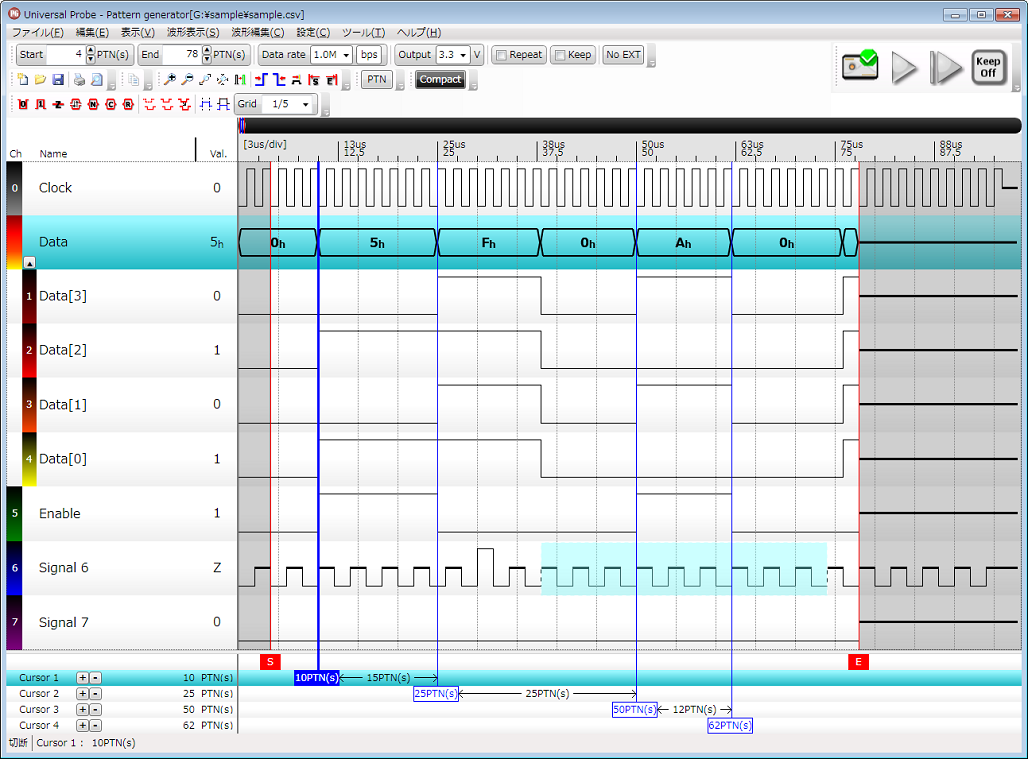

Pattern Generator

This is a software product to be used with Universal Probe.

Pattern Generator can create patterns of digital signals freely in GUI and output them from Universal Probe.
It shall be very useful, for example, in the following cases in development of electronic equipment which has been complicated.
- As Pattern Generator can give various signals to designed equipment freely, it allows you to perform the operation verification of normal and
  abnormal systems easily. You can improve design quality while shortening verification period.
- As Pattern Generator can give signals to the verified devices, you can start to verify the operation without writing a program for the microcontroller
   , etc.
- Once the signal patterns are made, they can be used for the test and maintenance of electronic devices and equipment because you can repeat
   as many patterns as you wish at any time.
- Pattern Generator can be used for isolating the problems in development of electronic equipment.

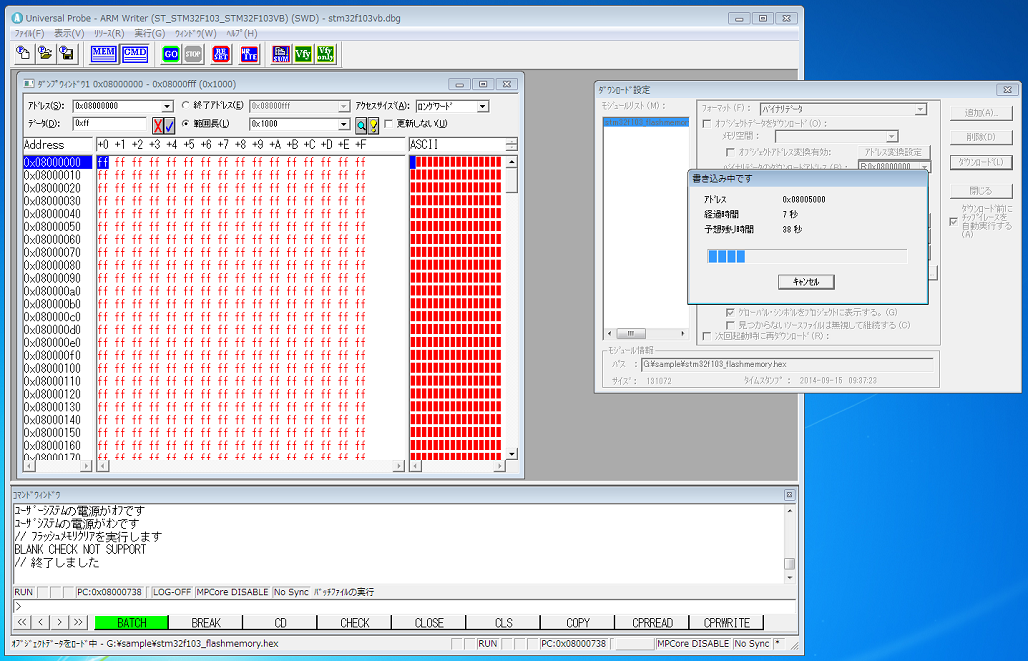

ARM Writer

This is a software product to be used with Universal Probe.

As ARM Writer controls Universal Probe, it is possible to write data to microcontrollers equipped with onboard ARM core and flash memory connected to the microcontrollers through JTAG/SWD.
Also, as Universal Probe can record writing operation from ARM Writer and the data to be written, it is possible to repeat the recorded writing operation (write the data) without PC. (*)

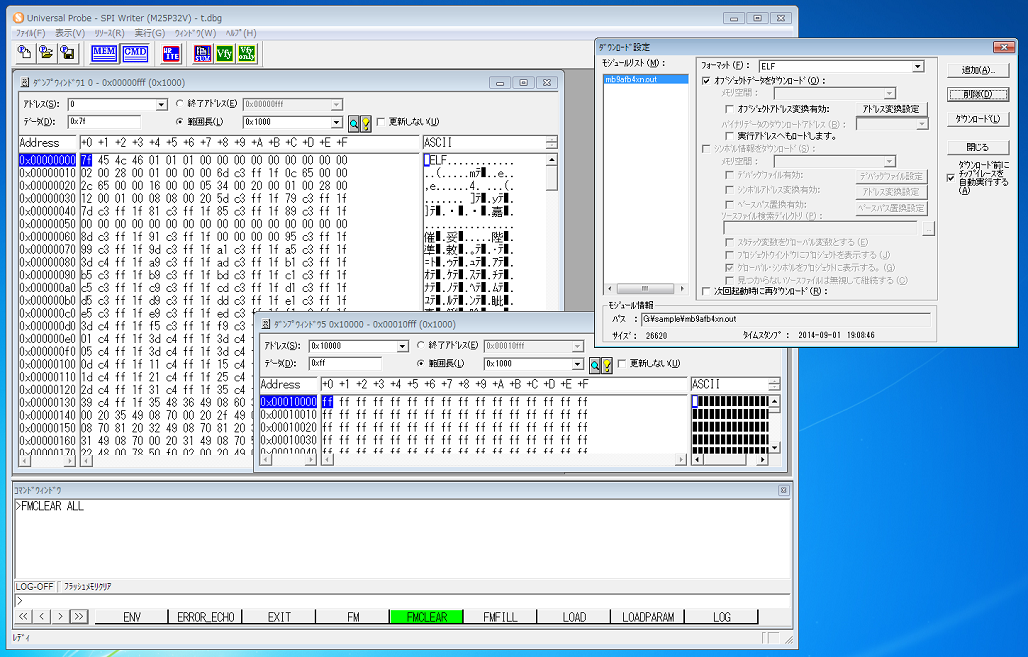

SPI Writer

This is a software product to be used with Universal Probe.

As SPI Writer controls Universal Probe, it is possible to write data directly to flash memory with SPI interface through onboard or ROM socket.
Also, as Universal Probe can record writing operation from SPI Writer and the data to be written, it is possible to repeat the recorded writing operation (write the data) without PC. (*)
